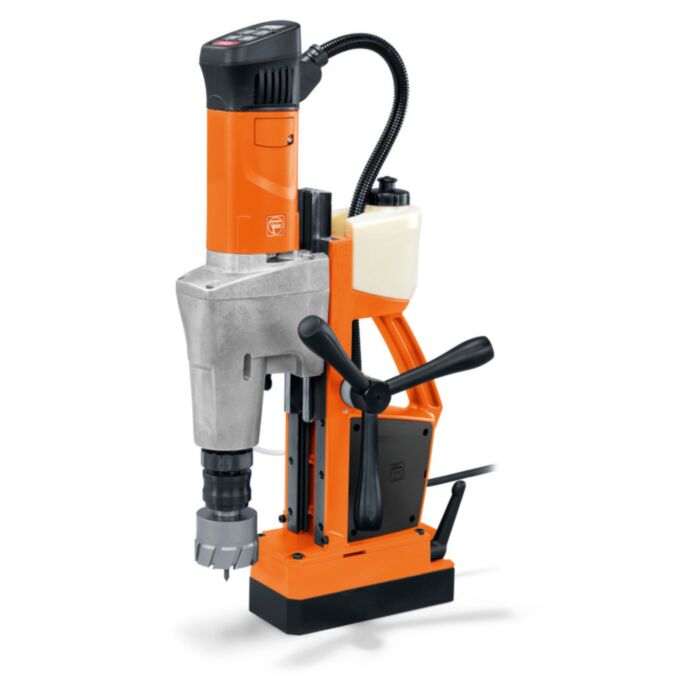

Fein 72704361000 KBM 65 U Metal Core Drilling Unit - 65mm

Fein 72704361000 KBM 65 U Metal Core Drilling Unit - 65mm

Manufacturer: FEIN

SKU: 72704361000

EAN13: 4014586872902

Extremely low-wear tool design with swivel-mounted motor cable protection hose for tough use in industry and manual trades

Perfect power-to-weight ratio thanks to compact, weight-optimised design and FEIN 1,300 W high-power motor with tacho electronics for high speed stability for reliable and economical working

With clockwise/anti-clockwise operation, electronic speed setting and a 315 stroke range, this is a universal tool for core drilling, twist drilling, tapping, countersinking and reaming

Click here for product info
£1,911.37 £1,592.81
In stock

Free UK Delivery on orders over £75 including VAT

Quantity Price Each Ex VAT Price Each Inc VAT
1+ £1,592.81 £1,911.37
10+ £1,513.17 £1,815.80

Live Chat Icon

Need shopping help?

Ask a Specialist

Product Information

  • The Fein KBM 65 U Metal Core Drilling Unit is an extremely low-wear tool design with swivel-mounted motor cable protection hose for tough use in industry and manual trades.
  • Perfect power-to-weight ratio thanks to compact, weight-optimised design and FEIN 1,300 W high-power motor with tacho electronics for high speed stability for reliable and economical working.
  • With clockwise/anti-clockwise operation, electronic speed setting and a 315 stroke range, this is a universal tool for core drilling, twist drilling, tapping, countersinking and reaming.
  • Fine adjustment of the drill spindle for convenient tool alignment.
  • MT3 tool mounting. Simple operating concept avoids mix-ups and can be clearly seen by the user. Convenient magnetic holding force display helps the user to reliably position the tool. High magnetic holding force. Integrated coolant tank delivers long core drill bit lives.
  • Feed handwheel can be moved from one side to the other.
  • Speed saving "memory function".
  • Personal safety switch.

Technical Details

Manufacturer Fein
Cable Length 4 m
Output Power 730 W
Power Input 1300 W
Stroke Length 145 mm
Voltage 230 V
Weight 15.7 kg
Tapping M20
Countersinking Max Diameter 50 mm
Maximum Speed Full Load 240 RPM
Tool Holder MK 3
Core Drill Holder QuickIN
Load Speed In Speed 1 60 - 120 rpm
Load Speed In Speed 2 90 - 170 rpm
Load Speed In Speed 3 150 - 300 rpm
Load Speed In Speed 4 230 - 430 rpm
Carbide Core Drill Bit Max Diameter 65 mm
Core Drill Drilling Depth Max 50 mm
HSS Core Drill Max Diameter 45 mm
Reaming Max Diameter 25 mm
Total Stroke Range 315 mm
Twist Drill Max Diameter 25 mm

Customer Reviews

Customer Questions & Answers

Customer Questions
No Questions
Did you find what you were looking for?

Set Includes

Amount Included Item
1Coolant Tank
1Lashing Strap
1Swarf Hook
1Centering Pin
1Contact Guard
1Drift Key
1Case
