DMC TSK8023 Twist-Strip Kit with TSK8000 & All 2 & 3 Conductor Die Sets - 0.081" - 0.180"

DMC TSK8023 Twist-Strip Kit with TSK8000 & All 2 & 3 Conductor Die Sets - 0.081" - 0.180"

Manufacturer: DMC

SKU: TSK8023

Interchangeable Die Sets

Adjustable Blade Depth

Meets MIL-DTL-32610 Standards

Ergonomic Design

Kit Includes Die Sets

Click here for product info
£8,380.37 £6,983.64
In stock

Free UK Delivery on orders over £75 including VAT

Quantity Price Each Ex VAT Price Each Inc VAT
1+ £6,983.64 £8,380.37
10+ £6,704.29 £8,045.15
25+ £6,285.28 £7,542.34

Live Chat Icon

Need shopping help?

Ask a Specialist

Product Information

  • Designed to strip the outer jacket of shielded twisted multi-conductor and round cables, accommodating diameters from 0.081" (2.06mm) to 0.180" (4.57mm) .
  • The repeatable function of the tool reduces operator error and is up to 3 to 5 times faster than conventional wire stripping methods.
  • Utilises removable and replaceable die sets with contoured cable tracks and carbide blade sets, allowing for precise wire stripping as needed.
  • Die sets are available for cables with 1 to 4 inner conductors.
  • Features blade adjustment knobs, enabling precise control over blade depth to accommodate variances in cable jacket thickness and lay length.
  • Incorporates a zero friction ball bearing design with articulating arms, facilitating smooth operation and reducing operator fatigue during repetitive tasks.
  • The concealed carbide blades eliminate risk of injury.
  • Weighs approximately 0.81 lbs (0.37 kg) with dimensions of 1.75 inches wide and 9.75 inches tall, making it portable and suitable for both field and workshop environments.
  • Meets MIL-DTL-32610 standards, ensuring suitability for aerospace and defence applications.

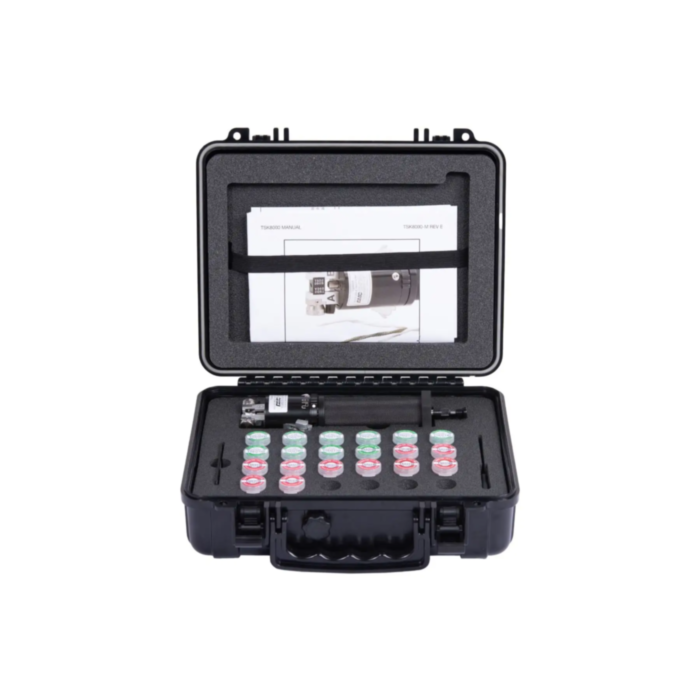

  • Comes in a foam lined black polypropylene copolymer case, with a cable diameter gauge card, hex driver, quick start guide and spaces to store die sets. (Die sets sold separately or as part of a kit.)

Technical Details

Manufacturer DMC
MIL-SPEC Yes
Can Strip From [mm] 2.06 mm
Can Strip To [mm] 4.57 mm
Total Length 9.75 "
Weight 6.2 lb
Width 1.75 "
Can Strip Cable Type Multi-Conductor Twisted Cable
For Use With TSDXXXX Die Sets
Wire Stripper Type Twist-Strip

Customer Reviews

Customer Questions & Answers

Customer Questions
No Questions
Did you find what you were looking for?

Product Attachments

Set Includes

Product MIL-SPEC Weight
TSD2140 Yes 0.01 lb
TSD2180 Yes 0.01 lb
TSD2110 Yes 0.01 lb
TSD2120 Yes 0.01 lb
TSD2160 Yes 0.01 lb
TSD2150 Yes 0.01 lb
TSD2170 Yes 0.01 lb
TSD2100 Yes 0.01 lb
TSD2130 Yes 0.01 lb
Tool Quantity
TSK8000 - Tool Kit Assembly1
TS8000 CIC Cable Diameter Gauge Card1
Foam Lined Carry Case1
TSD2090 - TSK8000 Universal Die Set for .081" - .090" 2 Cond. Cables1
TSD2100 - TSK8000 Universal Die Set for .091" - .100" 2 Cond. Cables1
TSD2110 - TSK8000 Universal Die Set for .101" - .110" 2 Cond. Cables1
TSD2120 - TSK8000 Universal Die Set for .111" - .120" 2 Cond. Cables1
TSD2130 - TSK8000 Universal Die Set for .121" - .130" 2 Cond. Cables1
TSD2140 - TSK8000 Universal Die Set for .131" - .140" 2 Cond. Cables1
TSD2150 - TSK8000 Universal Die Set for .141" - .150" 2 Cond. Cables1
TSD2160 - TSK8000 Universal Die Set for .151" - .160" 2 Cond. Cables1
TSD2170 - TSK8000 Universal Die Set for .161" - .170" 2 Cond. Cables1
TSD2180 - TSK8000 Universal Die Set for .171" - .180" 2 Cond. Cables1
TSD3090 - TSK8000 Universal Die Set for .081" - .090" 3 Cond. Cables1
TSD3100 - TSK8000 Universal Die Set for .091" - .100" 3 Cond. Cables1
TSD3110 - TSK8000 Universal Die Set for .101" - .110" 3 Cond. Cables1
TSD3120 - TSK8000 Universal Die Set for .111" - .120" 3 Cond. Cables1
TSD3130 - TSK8000 Universal Die Set for .121" - .130" 3 Cond. Cables1
TSD3140 - TSK8000 Universal Die Set for .131" - .140" 3 Cond. Cables1
TSD3150 - TSK8000 Universal Die Set for .141" - .150" 3 Cond. Cables1
TSD3160 - TSK8000 Universal Die Set for .151" - .160" 3 Cond. Cables1
TSD3170 - TSK8000 Universal Die Set for .161" - .170" 3 Cond. Cables1
TSD3180 - TSK8000 Universal Die Set for .171" - .180" 3 Cond. Cables1
