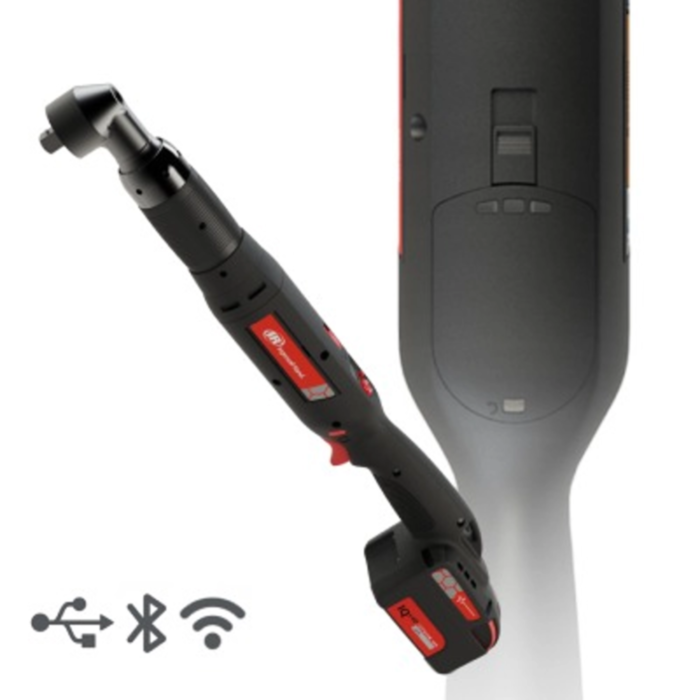

Ingersoll Rand QXXN Cordless High Torque Angle Wrenches 4 - 80 Nm

New

Ingersoll Rand QXXN Cordless High Torque Angle Wrenches 4 - 80 Nm

Manufacturer: INGERSOLL RAND

SKU: QXXN5AT

Provides real-time data insights, process tracking and remote configurability

Fieldbus and MES Interface enables seamless control system integration

Lightweight, compact and ergonomic design

Visual operator feedback using red and green colours

Powerful, brushless DC motor

Dual speed non contact trigger for smooth and efficient operation

Click here for product info
Out of stock

Free UK Delivery on orders over £75 including VAT

Live Chat Icon

Need shopping help?

Ask a Specialist

Product Information

  • The QX Series of Ingersoll Rand transducerised screwdrivers have been engineered for high speed precision assembly in data driven manufacturing environments.
  • Can be implemented seamlessly into any production setup. The QXXN models further add Bluetooth connectivity and Wireless Radio to wirelessly program the QX Connect Series tools using the INSIGHT Connect App reducing set up time.
  • The closed-loop transducerised control ensures precise torque and angle accuracy, minimizing variability while supporting Industry 4.0 initiatives with real-time data insights, process tracking and remote configurability.

Additional Features

  • Visual operator feedback using green and red lights.
  • Program through USB with INSIGHTqcx Controller and the Insight Connect App.
  • Fieldbus and MES Interface enables seamless control system integration.
  • Designed for Smart Tool Conversion – Replaces non-intelligent fastening tools with torque and angle control with intuitive feedback using green, red, and yellow indicators for fastening effectiveness.
  • Compatible with Ingersoll Rand® IQV™ battery platform.
  • Closed Loop Transducer Control – Precise torque and angle measurement with real-time feedback reduces variability and ensures consistent fastening accuracy.
  • The lightweight, compact and ergonomic design reduces strain and effort on workers.
  • ETS ( Ergonomically Tuned Strategy) variants minimise torque reaction by up to 63%.
  • Robust design supports continuous and high volume usage.
  • Supports multiple fastening configurations (32 Psets) within a single tool, reducing the need for multiple tools in the production environment.
  • Super bright LED headlight with programmable on and off times.
  • Durable DC brushless motor tested beyond a million cycles.
  • Designed with fewer parts in order to simplify maintenance and reduce downtime.

ALL PRODUCTS IN THIS RANGE

Model Torque Range (Nm) Free Speed (RPM) Drive Size/Type Communication Display Battery Type Weight w/out Battery (kg) Side to Center (mm) Length (mm) Height (mm)
QXXD5AT020PS06 4.0-20 1045 3/8 in. Square Wireless Enabled + USB + Bluetooth No 40V Li-ion 2.04 13.1 577.7 100
QXXD5AT030PS06 6.0-30 775 3/8 in. Square Wireless Enabled + USB + Bluetooth No 40V Li-ion 2.18 17.2 581.8 100
QXXD5AT030PS08 6.0-30 775 1/2 in. Square Wireless Enabled + USB + Bluetooth No 40V Li-ion 2.18 17.2 581.8 100
QXXD5AT035PS06 7.0-35 640 3/8 in. Square Wireless Enabled + USB + Bluetooth No 40V Li-ion 2.18 17.2 581.8 100
QXXD5AT035PS08 7.0-35 640 1/2 in. Square Wireless Enabled + USB + Bluetooth No 40V Li-ion 2.18 17.2 581.8 100
QXXD5AT040ES08 8.0-40 545 1/2 in. Square Wireless Enabled + USB + Bluetooth No 40V Li-ion 2.27 21.6 586.1 100
QXXD5AT040PS08 8.0-40 545 1/2 in. Square Wireless Enabled + USB + Bluetooth No 40V Li-ion 2.27 21.6 586.1 100
QXXD5AT080ES08 12.0-80 375 1/2 in. Square Wireless Enabled + USB + Bluetooth No 40V Li-ion 2.27 21.6 586.1 100
QXXD5AT080PS08 12.0-80 375 1/2 in. Square Wireless Enabled + USB + Bluetooth No 40V Li-ion 2.27 21.6 586.1 100

Technical Details

Manufacturer Ingersoll Rand
Drive Size 3/8", 1/2"
Cordless Yes
Grip Type Right Angle
Torque Range [Nm] 4 - 80 Nm
Drive Type Square
Actuation/Throttle Type/Switch Type Trigger
Battery Type 40V Li-ion
Built-In Light Yes
Maximum Adjustable RPM 1045
Minimum Adjustable RPM 375
Reversible Yes
Vibration Uncertainy K* [m/s2] 3
Height 100 mm
Maximum Torque 80 Nm
Minimum Torque 4 Nm
Side to Center Distance 21.6 mm
Sound Pressure 71 dB
Total Length 586.1 mm
Voltage 40 V
Weight 2.27 kg
Communication Bluetooth, USB Cable, Zigbee
With Display No
Data Recording Yes
Tool Finder Yes
