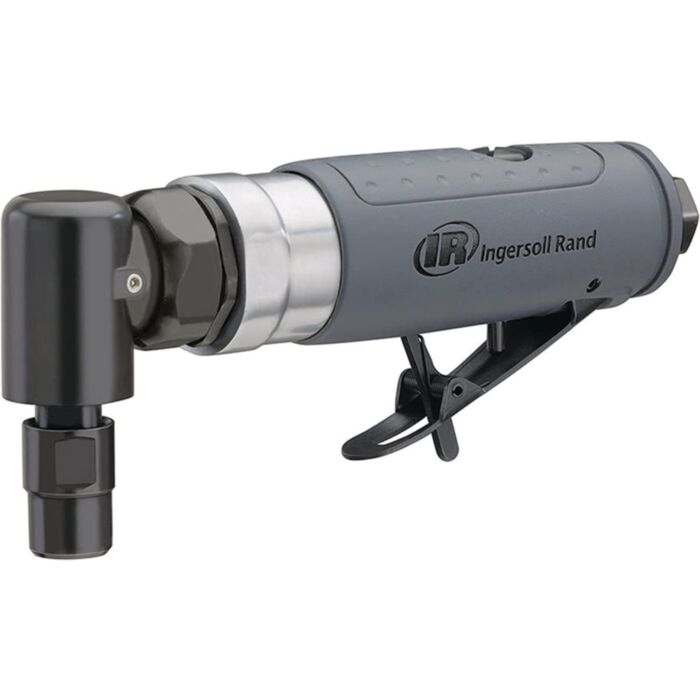

Ingersoll Rand 302B-M Air Powered Angle Die Grinder - 20,000RPM

Ingersoll Rand 302B-M Air Powered Angle Die Grinder - 20,000RPM

Manufacturer: INGERSOLL RAND

SKU : 302B-M

EAN13 : 0663023167480

Right-angled die grinder with an output of 0.25kW and 20,000 RPM

Low weight and the self-locking throttle lever prevents accidental start-up

Can be used for porting, weld breaking, deburring, polishing and grinding

PRODUCT INFO
£128.51 £107.09
In stock

Free UK Delivery on orders over £75 including VAT

Live Chat Icon

Need shopping help?

Ask a Specialist

Product Information

  • Right-angled die grinder that is powered by compressed air with an output of 0.25kW.
  • Ideal tool for porting, weld breaking, deburring, polishing and grinding.
  • It has a 033hp motor that delivers 20,000 RPM.
  • Has a ball-bearing construction with precision-machined steel gears to reduce vibration.
  • Built-in lubricating wick increases the angle gear life.
  • The self-locking throttle lever prevents accidental start-up of the grinder.
  • Extremely light weight at only 0.58kg.
  • Has a composite housing that protects the tool from cold air and enhances the operator's comfort during use.

Technical Details

Handle Style Right Angle
Grinder Type Die Grinder
Actuation/Throttle Type/Switch Type Safety Lever
Bearing Type Ball Bearing
Exhaust Location Rear
Lock Mechanism Lever lock in off position
Lubrication 10G
Standard Collet Included Yes
Standards/Certifications 2006/42/Ec, En Iso 28927-12, En Iso 15744, En Iso 11148-9
Wheel Type Burr
Air Consumption @ Load 170 l/min
Air Inlet Size 651 "
Air Pressure 90 PSI
Arbor Collet Size 0.25 "
Height 60 mm
Height Over Spindle ["] 3 "
Height Over Spindle [mm] 76 mm
Maximum Free Speed 20000 RPM
Minimum Hose Size 0.375 "
Rated Power 0.33 HP
Right Angle Length 50.8 mm
Side to Center Distance 13.46 mm
Sound Power 101 dB
Sound Pressure 90 dB
Total Length 176 mm
Vibration Level 5.5 m/s2
Weight 0.58 kg
Width 95 mm
